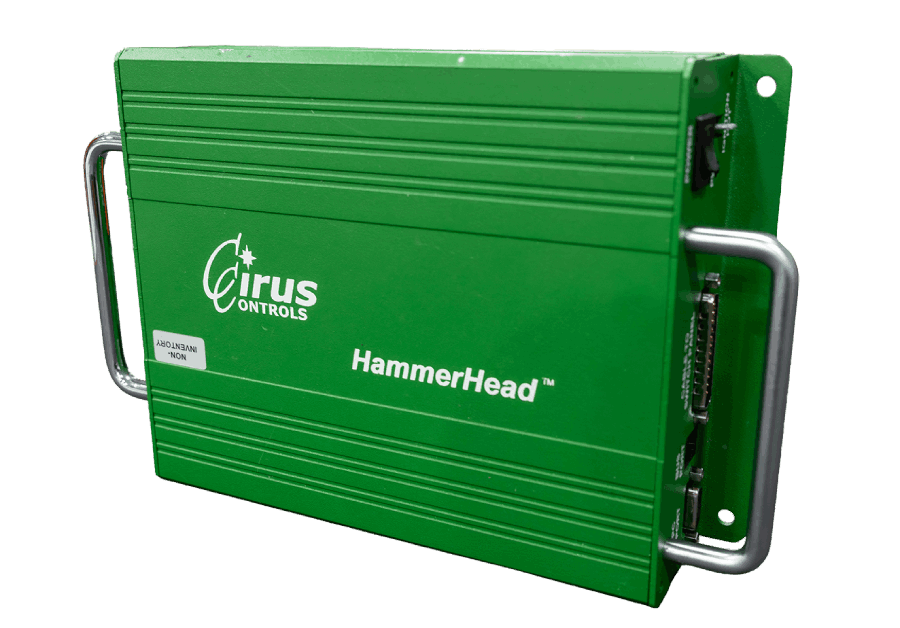

HammerHead: Programmable Vehicle Accessory Control System
The HammerHead™ from Certified Power Solutions is a 12-switch programmable accessory control system that centralizes command of vehicle electronics and hydraulics. Designed for simplicity and field-configurability, HammerHead gives operators complete control over mobile accessory functions through an intuitive, customizable interface.
With its Windows®-based configuration software, HammerHead allows users to program, label, and modify switch functions on site, creating a single, efficient system for managing all vehicle accessories.
All-in-One Control for Vehicle Accessories
HammerHead™ provides a complete control platform for lights, beacons, cameras, plow functions, and other mobile equipment accessories. It is ideal for fleets that require flexible, reconfigurable systems on a wide range of truck chassis.
Key Features:
- 12-switch programmable accessory control panel
- Select from 7 switch types using any Windows® PC
- Re-program and re-label switches on site
- Configuration software included with every system
- Compatible with Certified Power Solutions' communication bus for integrated control

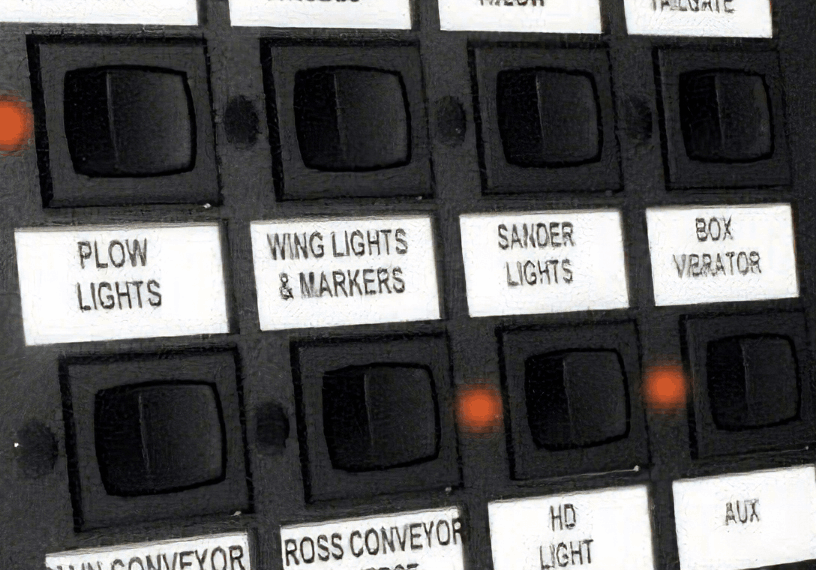

Programmable Switch Functions
Each HammerHead™ switch can be assigned a specific control function to meet vehicle or fleet needs:
- Momentary On/Off: Active while pressed, off when released
- On/Off: Press once for on, again for off
- Delayed On: Activates after a set time interval
- Delayed Off: Shuts down automatically after a programmed duration
- Default On: Starts on at power-up, press to turn off
- Default On/Off: Starts on at startup, toggles with each press
Combination and Sequencing Options
Operators can create linked or dependent switch behaviors for complex system requirements:
- Mutually Exclusive: One switch can disable up to four others
- Combination Switch: One master switch can activate up to four others
- Two-Button Guard: Requires two buttons to activate a function for safety
- Sequencing: Links switches in a defined order; turning off one can trigger the next in sequence
Technical Specifications
| Specification | Details |
|---|---|
| Switches | 12 configurable, programmable switch inputs |
| Switch Types | 7 user-selectable via configuration software |
| Software | Compatible with Windows® 2000 and newer |
| Protection | 10A auto-reset circuit breakers per relay |
| Mounting Options | Seat, pedestal, or standalone bracket |
| Communication | Certified Power Solutions control bus |
| Operating Temperature | -20°C to 70°C |
| Power Requirements | 11-15V DC, 15A max (10A fuse rating) |
HammerHead™ is engineered to simplify installation and field adjustments while maintaining long-term reliability. Each switch is individually protected, and the modular system design makes it easy to integrate with Certified Power Solutions' hydraulic and electronic control systems..
Whether used on snow and ice fleets, utility vehicles, or municipal trucks, HammerHead delivers a single, scalable platform for modern accessory control.
