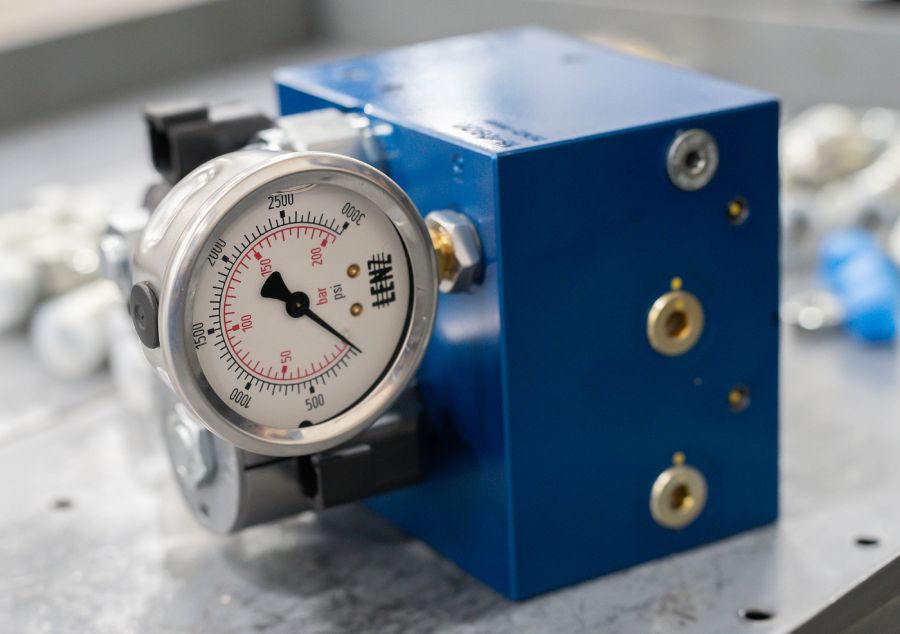

Modular Manifold Systems: Flexible Hydraulic Control for Snow and Ice Equipment
Certified Power Solutions designs and manufactures modular manifold systems that provide flexible, precise hydraulic control for plow and spreader applications. Engineered for performance, reliability, and serviceability, these manifolds use high - performance cartridge valves to deliver smooth, proportional operation across a wide range of vehicles and hydraulic demands.

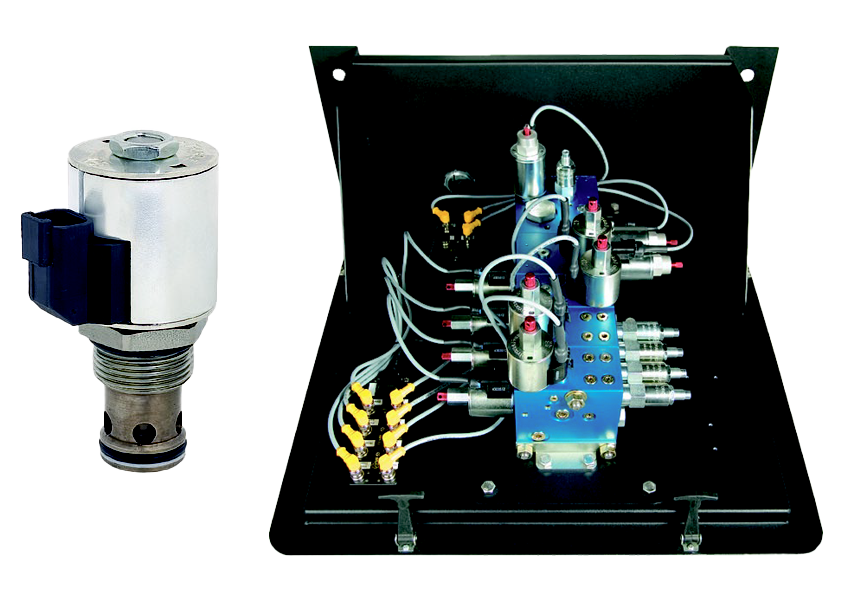

Versatile, Serviceable Hydraulic Manifold Design
Certified Power Solutions modular manifolds are available in multiple configurations to support everything from light - duty trucks to full - size patrol plows. Built with interch angeable cartridge valves, each manifold can be quickly serviced or reconfigured without removing the entire assembly.
Key features Include:
- Modular cartridge - valve design for scalable control
- Proportional flow metering for smooth hydraulic response
- Reduced pressure loss and energy - efficient operation
- Simple service and maintenance with replaceable cartridges
- ISO 9001:2008 - certified manufacturing for consistent quality
Product Series Overview
Patrol Series
The Patrol Series is built for large plow trucks and high - flow systems that demand maximum hydraulic output and rugged durability. With flow capacities up to 60 GPM, each valve section includes load holding and full - flow reliefs to maintain precise, safe control.
Z Series
The Z Series offers a compact, low - flow solution for smaller plow and spreader trucks. Rated for 20 GPM inlet flow, Z Series valves provide the same proportional precision and corrosion resistance as the Patrol Series — in a smaller, quieter package ideal for municipal and light - duty vehicles.
Reliable, Configurable, and Fleet - Ready
Certified Power Solutions' modular manifold systems integrate easily with FleetPilot™ and other Certified Power Solutions control solutions. Each system is engineered for consistent flow, low maintenance, and long service life — backed by a 5 - year warranty and Certified Power Solutions' full engineering and service support network across the Midwest.
- On-screen error messages and audible alarms for real-time fault detection
- Output short/open circuit detection through the CPU
- Sensor short detection and automatic message alerts
- Conveyor stall input for added system protection
- Remote blast and pause modes for enhanced operator safety
Technical Specifications
| Specification | Patrol Series | Z Series |
|---|---|---|
| Flow Capacity | 60 GPM inlet; 3–50 GPM work sections | 20 GPM inlet; 3–20 GPM work sections |
| Max Pressure | 3500 psi | 3500 psi |
| Reliefs | A & B port full-flow reliefs | A & B port full-flow reliefs |
| Load Holding | Built into each cylinder section | Built into each cylinder section |
| Corrosion Protection | 1000-hour salt spray rated coils | 1000-hour salt spray rated coils |
| Warranty | 5 years (valve and coil assembly) | 5 years (valve and coil assembly) |
| Construction | ISO 9001:2008 certified facility | ISO 9001:2008 certified facility |
| Applications | Patrol and high-flow snowplow vehicles | Light- and medium-duty plow trucks |
Your Fleet, Your Way™
FleetPilot by Certified Power Solutions combines equipment controls, hydraulics, and telematics in one adaptable platform. Whether building new systems or upgrading existing equipment, Certified Power Solutions ensures precision, performance, and long - term value for your fleet.
