XDS: Integrated Plow and Spreader Control System
XDS™ is a proven CAN-bus powered spreader control system that has served municipalities and DOTs for years. Designed for reliability and precision, the XDS combines plow and spreader control into one integrated system — supporting both standard and dual-spreader configurations for snow and ice fleets.
Although replaced in new installations by XDS MAX™, the XDS remains a dependable and fully supported option for fleets that continue to rely on its field-tested performance.
Proven CAN-Bus Control for Snow and Ice Operations
The XDS is a full-featured spreader control system built on CAN-bus technology, delivering precise control and data communication across every connected component.
It supports advanced functions such as:
- Dual spreader (tow plow) control
- Material positioning spinner control
- Dynamic gate control for variable spread patterns
- Anti-ice and pre-wet system sharing

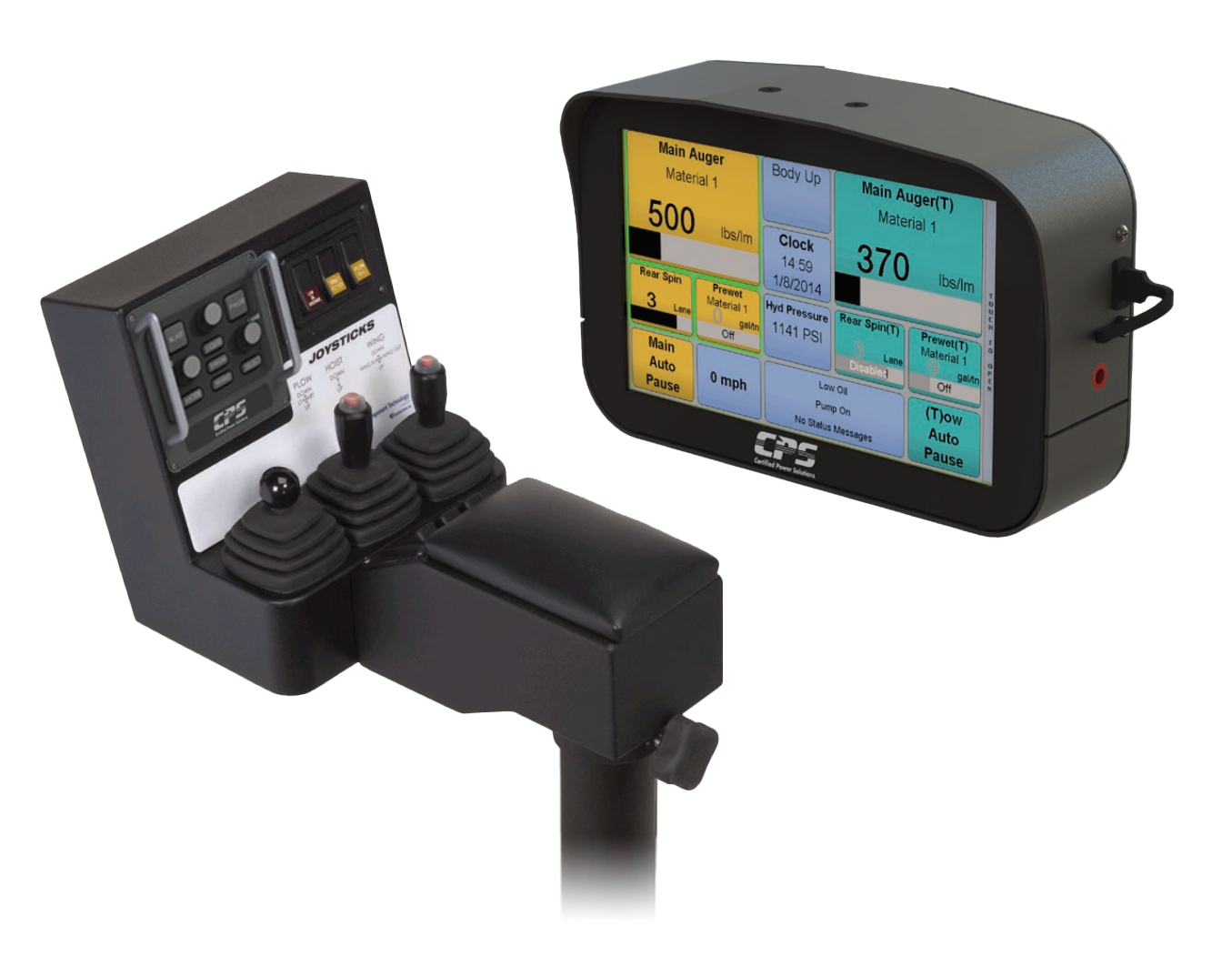

Operator-Friendly Design
The XDS provides operators with intuitive, reliable control in demanding winter conditions.

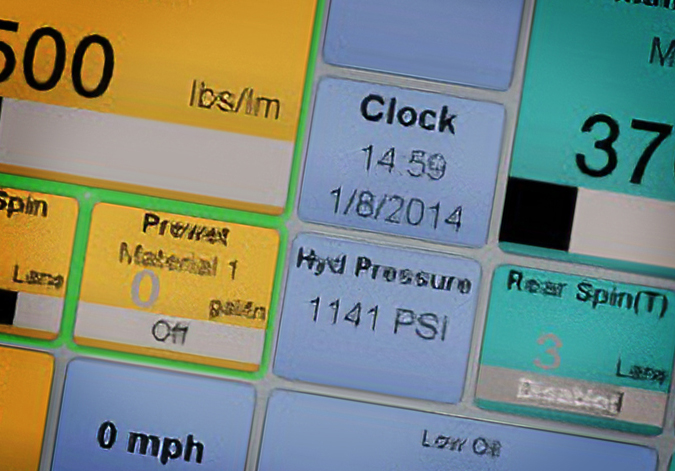

- 7" color LCD touchscreen display
- Multi-function joystick or up to four individual joystick options
- Backlit operator panel for low-light conditions
- Dynamic joystick calibration for enhanced precision
System Features and Capabilities
Built for performance and adaptability, the XDS integrates plow, spreader, and liquid control functions in one system.
Key features include:
- Enhanced diagnostics and on-board monitoring
- 30 configurable application rates
- Area-based spreading and remaining material display
- Trimmable digital I/O for flexible configuration
- AVL output for automatic vehicle location integration
- Live serial data capability for third-party AVL hardware
- Variable gate and directional spinner control
- Blast-by-distance functionality
Technical Specifications
- 7" color LCD touchscreen
- USB firmware updates
- 4 digital outputs
- Configurable I/O and customizable interface
- Speed sensor and road/air temperature inputs
- 8 digital switch inputs (PNP)
- 13 digital outputs
- 14 digital inputs and 5 analog inputs
- 14 high-side driver outputs (PWM capable)
- 1 analog input (4–20mA, 100 Ohm)
- 4 digital switch inputs (PNP) and 13 (NPN)
- 4 feedback sensor inputs
Ongoing Support for Legacy Systems
Even as newer systems like XDS MAX™ become standard, we continue to provide full service, support, and parts availability for existing XDS systems. Our engineering and field service teams ensure compatibility, calibration, and reliable performance for every installed unit.
Your Fleet, Your Way™
FleetPilot by Certified Power Solutions combines equipment controls, hydraulics, and telematics in one adaptable platform. Whether managing legacy systems like XDS™ or upgrading to XDS MAX™, we help fleets maintain precision, performance, and reliability across every operation.
