Black Tip: Proportional Plow Control System
The Black Tip™ Series from Certified Power Solutions delivers dependable, fully proportional control for multi-function plow trucks. Available in 1- or 2-joystick configurations, the system provides smooth, precise control of up to four hydraulic devices, giving operators efficient, responsive performance for every plowing application.
Powered by our Mako™ software, the Black Tip™ Series allows technicians to independently adjust the speed of each joystick direction without rewiring or modifying hydraulics. This simplifies setup while improving accuracy and comfort during operation.

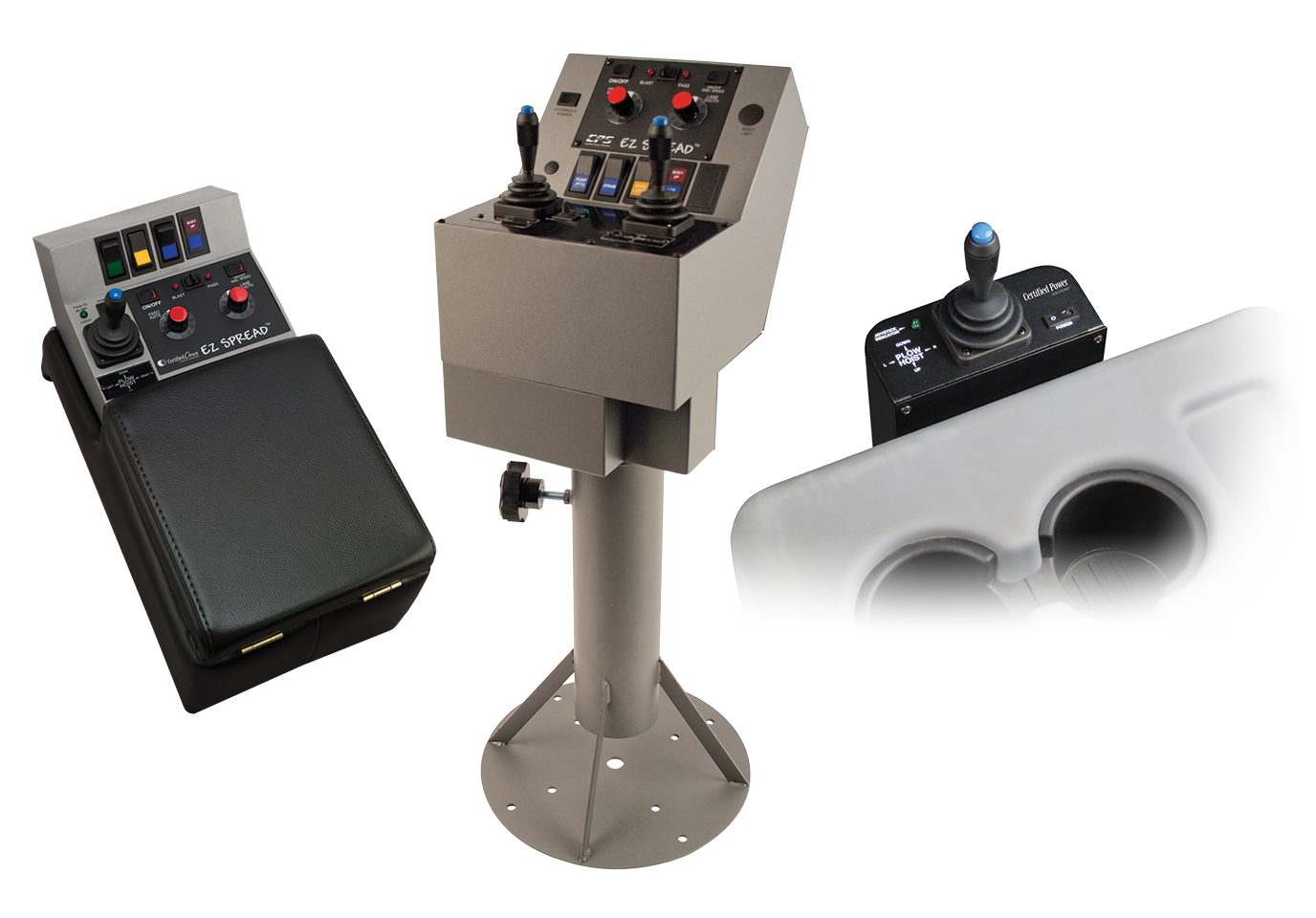

Proportional Control for Multi-Function Plow Trucks
Black Tip™ systems offer flexible joystick configurations and integrated safety features that make them ideal for municipal fleets, contractors, and operators who need precise proportional performance.
Key Features:
- Available in 1- or 2-joystick configurations (console, jump-seat, or pedestal mount)
- BT 108: Controls up to 2 independent devices with 8 PWM channels
- BT 210: Controls up to 4 independent devices with 10 PWM channels
- Frequency range: 40–450 Hz
- True Hall-effect joysticks (no mechanical contacts) for long-term reliability
- Compatible with EZ Spread™, DualSpread™, and SpreadSmart RX™ systems for integrated plow and spreader control

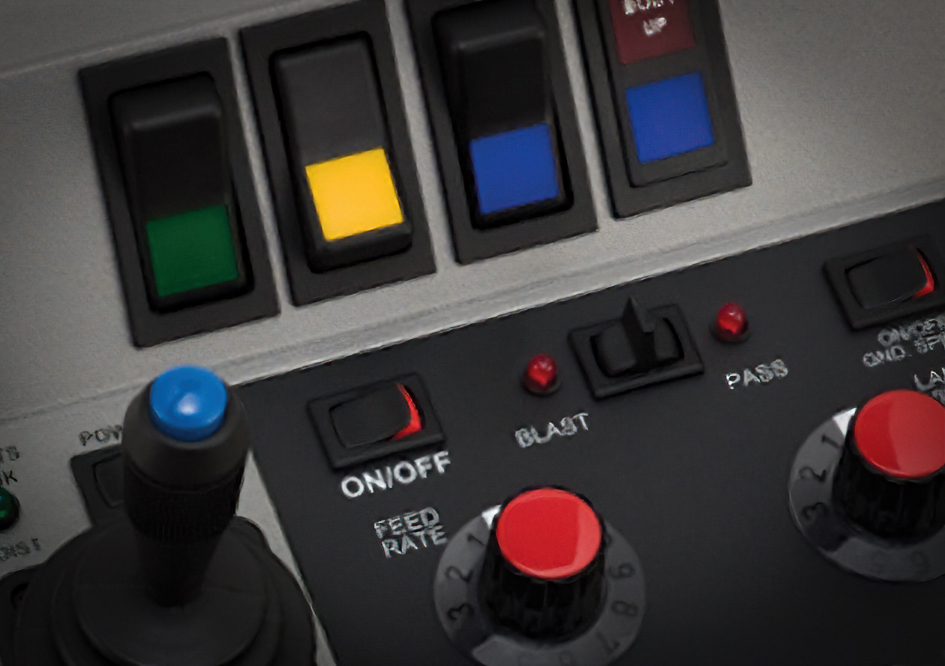

Built-In Safety and Diagnostics
Every Black Tip™ joystick includes safeguards that protect both the operator and the equipment.
- SafeStik™ automatically disables the failed axis if an axis malfunction occurs
- Channel Safe™ detects and protects against open or short circuits in hydraulic channels
- Programmable interlocks for hoist, plow, wing, or blade lock (requires external sensors or switches)
- LED diagnostics display for hoist and plow functions
- Operating range: –20°C to 70°C
- Power: 11–15V DC, 10A max, internal fuse

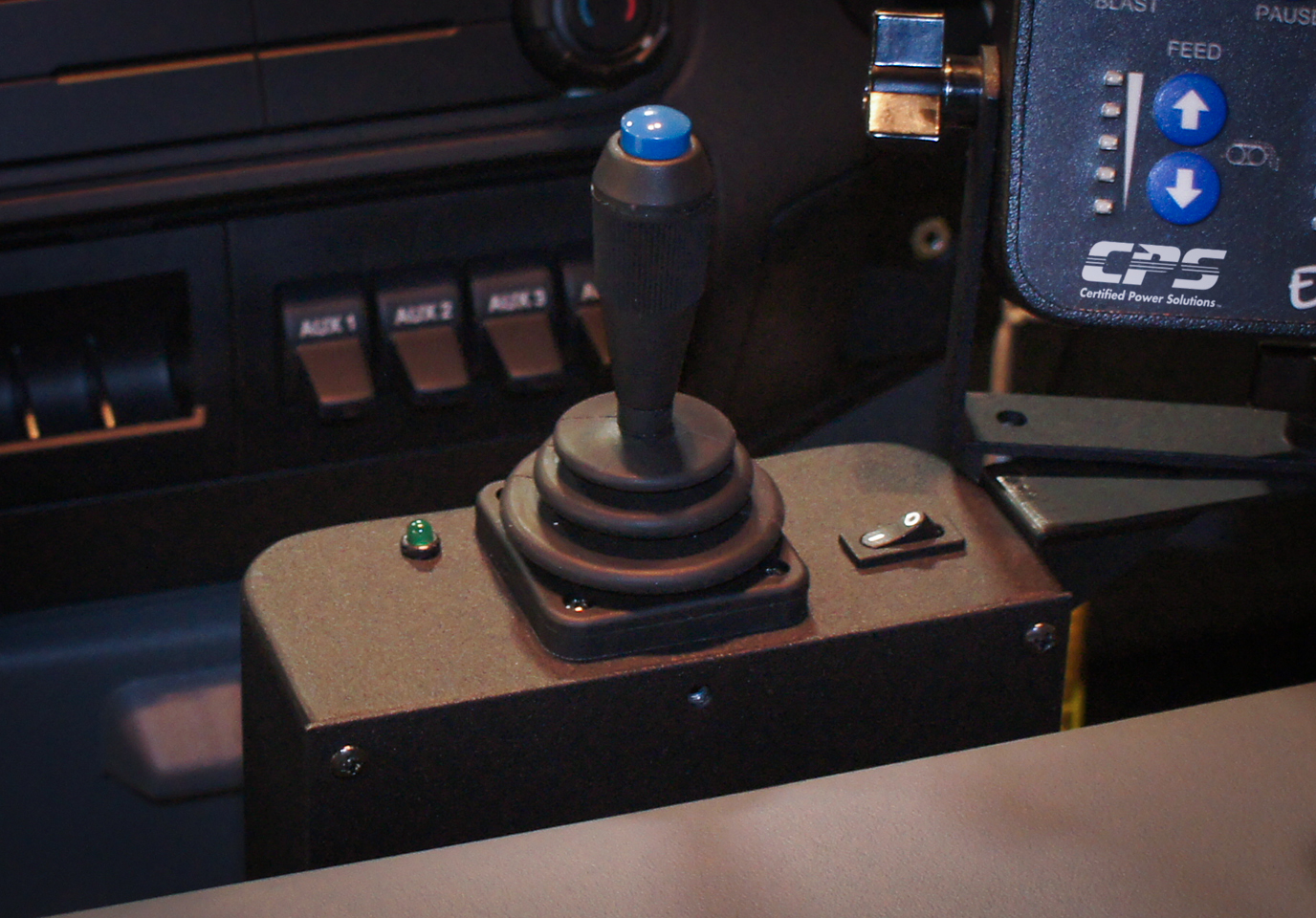

Operator Interface and Accessory Integration
The Black Tip™ joystick is designed for operator comfort and easy customization.
- Supports up to five Sprague® accessory switches for on/off or momentary control
- Up to two integrated warning indicators (labeled and color-coded)
- Smooth, proportional joystick motion with 27° travel per axis
- Optional LED mode display for quick visual feedback
Technical Specifications
| Specification | Details |
|---|---|
| Models | BT 108, BT 210 |
| Device Capacity | BT 108: up to 2 devices; BT 210: up to 4 devices |
| Proportional Channels | BT 108: 8 PWM; BT 210: 10 PWM |
| Frequency Range | 40–450 Hz |
| Joystick Type | True Hall-effect (magnetic, no mechanical contacts) |
| Motion Range | 27° per axis (X, Y) |
| Safety Systems | SafeStik™, Channel Safe™, programmable interlocks |
| Diagnostics | LED mode display for hoist and plow |
| Accessory Controls | Up to 5 Sprague® switches, 2 warning indicators |
| Operating Temperature | –20°C to 70°C |
| Power Requirements | 11–15V DC, 10A max, internal 10A fuse |
| Integration | Compatible with EZ Spread™, DualSpread™, SpreadSmart RX™ |
The Black Tip™ Series provides dependable proportional performance for plow trucks of every size, combining precision control, diagnostic visibility, and rugged durability. Certified Power Solutions backs every system with comprehensive engineering support, service, and parts availability across its regional facilities.
