Uni-Grip: Proportional Plow Control System

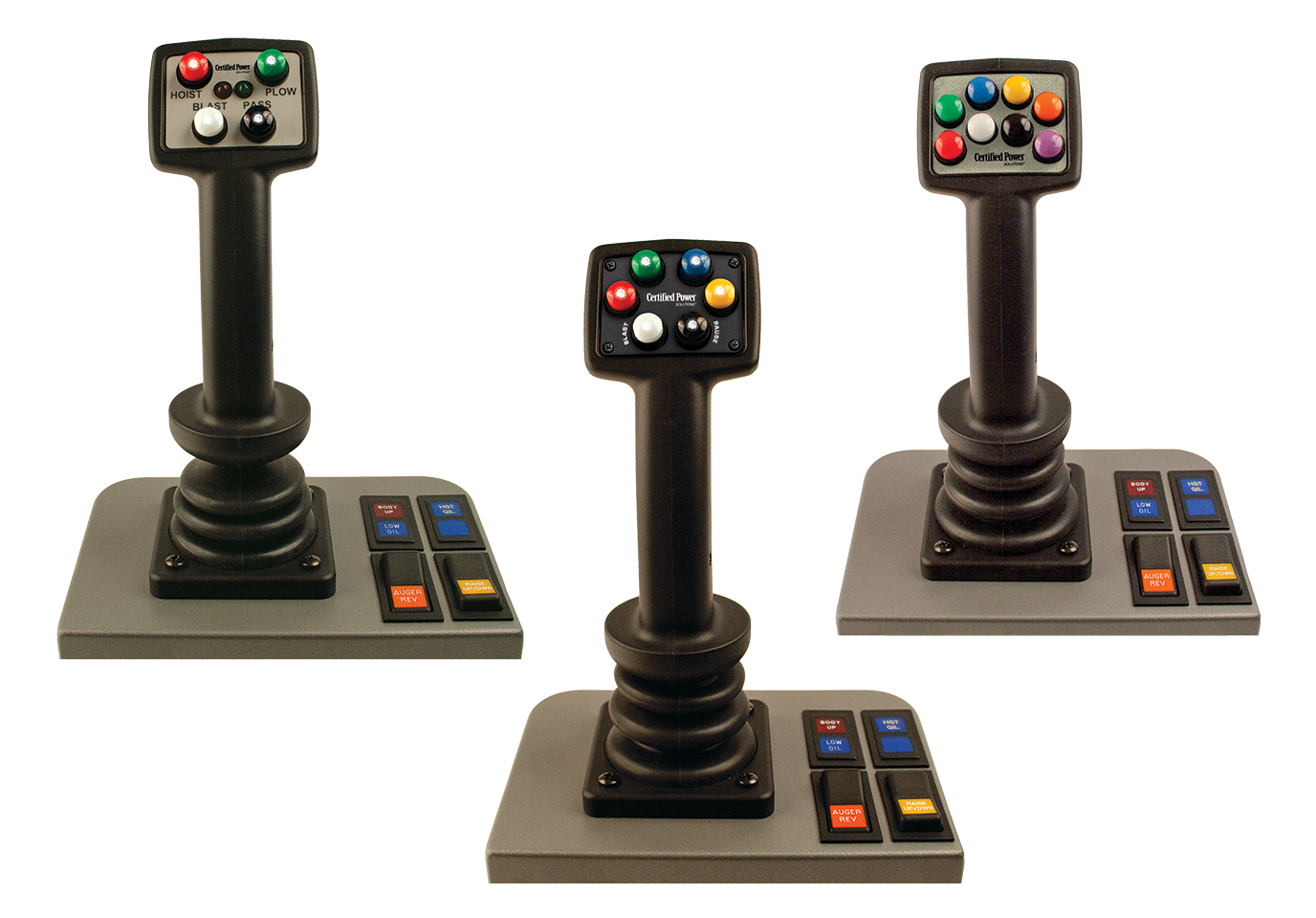

The Uni-Grip™ Series is a family of fully proportional single-joystick control systems designed for precise hydraulic management in snow and ice fleets. Available in three models — UG 412, UG 620, and UG 820 — each delivers smooth, responsive performance and can be configured for a wide range of plow, wing, hoist, or auxiliary hydraulic functions.

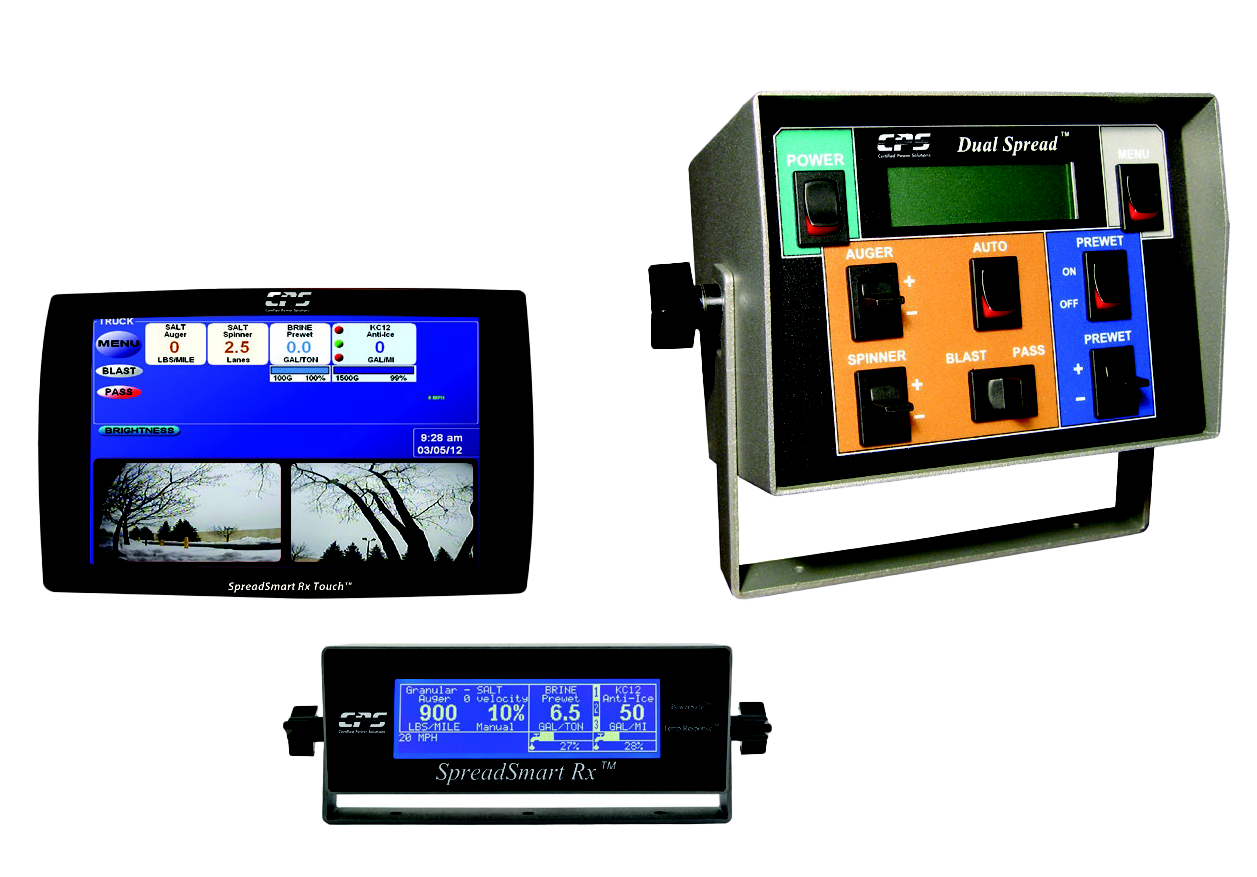

Paired with SpreadSmart RX™ or DualSpread™ electronic spreader controls, Uni-Grip provides seamless, multi-function operation within a single, unified control platform. Whether managing plow angles, blade lifts, or spreader functions, Uni-Grip gives operators fingertip precision, intuitive ergonomics, and field-proven durability.
Adaptable Functionality for Intelligent Plow Control
The Uni-Grip™ joystick integrates Certified Power Solutions' Mako™ electronics platform, allowing operators and technicians to fine-tune motion speed and control behavior for every direction of movement — without wiring or hydraulic modifications.
Key Features:
- Fully proportional single joystick with 2- or 3-axis options
- Multi-function control for up to seven hydraulic devices
- Controls up to 20 proportional channels on one stick
- Standard safety grip trigger for secure operation
- Configurable for patrol, garbage, or leaf collection vehicles
- Easy capability upgrades via the Mako™ electronics platform
Precision Engineering and Operator Safety
Each Uni-Grip™ joystick uses Hall-effect magnetic sensing for precise control with no mechanical contacts — minimizing wear and eliminating drift.
Safety and Diagnostic Features:
- SafeStik™ automatically disables any failed joystick axis during operation
- Channel Safe™ detects and protects against open or short circuits in hydraulic drive channels
- Built-in LED or LCD joystick diagnostics
- Programmable Combo-Up (Panic) button to return up to six devices to park position
- User-settable float controls for plow, wing toe, wing heel, and blade
- Optional hoist lock, plow lock, and blade interlocks (requires external sensors or switches)
Integrated System Compatibility
Uni-Grip™ integrates directly with Certified Power Solutions' SpreadSmart RX™ and DualSpread™ systems to create a coordinated, multi-function control environment. Operators can manage plow, spreader, and auxiliary hydraulics through a single, ergonomic interface, reducing complexity and improving operator efficiency.
Performance Specifications
| Frequency range | 40 – 450 Hz |
| Motion range | 27° per axis |
| Operating voltage | 11–15 V DC; max 10 A current draw |
| Operating temperature | –20 °C to 70 °C |
| Mounting options | Seat or pedestal mount |
From municipal fleets to heavy-duty highway operations, Uni-Grip™ joysticks deliver the precision, feedback, and reliability operators need to maintain control in demanding winter conditions. Certified Power Solutions provides full service, parts, and support for all Uni-Grip installations, ensuring continued performance season after season.
| Model | Device Capacity | Axes of Motion | Programmable Buttons | Display Options | PWM Channels |
|---|---|---|---|---|---|
| UG 412 | Up to 3 devices | 2 (X & Y) | 2 | LED indicator (joystick head) | 12 |
| UG 620 | Up to 5 devices | 3 (X, Y & Z) | 4 | Graphic LCD (white/blue) or optional color TFT | 20 |
| UG 820 | Up to 7 devices | 3 (X, Y & Z) | 6 | Graphic LCD (white/blue) or optional color TFT | 20 |
Your Fleet, Your Way™
FleetPilot by Certified Power Solutions combines equipment controls, hydraulics, and telematics in one adaptable platform. Whether operating systems like Uni-Grip™ with SpreadSmart RX™ or DualSpread™, or upgrading to next-generation controls, Certified Power Solutions ensures consistent performance and connected fleet efficiency.
